Orange: Hierarchical Clustering
Groups items using a hierarchical clustering algorithm.
Distances: distance matrix
Selected Data: instances selected from the plot Data: data with an additional column showing whether an instance is selected

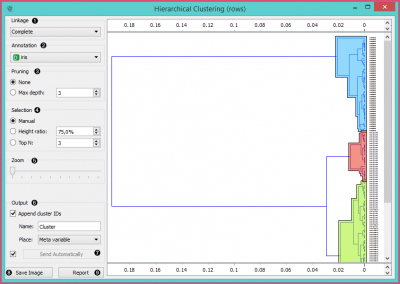

The widget computes hierarchical clustering of arbitrary types of objects from a matrix of distances and shows a corresponding dendrogram.
- The widget supports four ways of measuring distances between clusters:
- Single linkage computes the distance between the closest elements of the two clusters
- Average linkage computes the average distance between elements of the two clusters
- Weighted linkage uses the WPGMA method
- Complete linkage computes the distance between the clusters’ most distant elements
- Labels of nodes in the dendrogram can be chosen in the Annotation box.
- Huge dendrograms can be pruned in the Pruning box by selecting the maximum depth of the dendrogram. This only affects the display, not the actual clustering.
- The widget offers three different selection methods:
- Manual (Clicking inside the dendrogram will select a cluster. Multiple clusters can be selected by holding Ctrl/Cmd. Each selected cluster is shown in a different color and is treated as a separate cluster in the output.)
- Height ratio (Clicking on the bottom or top ruler of the dendrogram places a cutoff line in the graph. Items to the right of the line are selected.)
- Top N (Selects the number of top nodes.)
- Use Zoom and scroll to zoom in or out.
- If the items being clustered are instances, they can be added a cluster index (Append cluster IDs). The ID can appear as an ordinary Attribute, Class attribute or a Meta attribute. In the second case, if the data already has a class attribute, the original class is placed among meta attributes.
- The data can be automatically output on any change (Auto send is on) or, if the box isn’t ticked, by pushing Send Data.
- Clicking this button produces an image that can be saved.
- Produce a report.

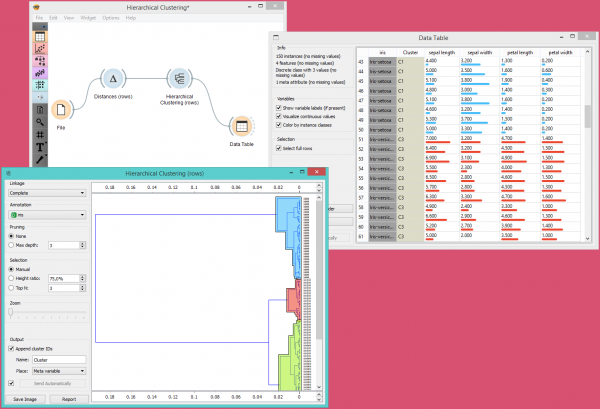

The workflow below shows the output of Hierarchical Clustering for the Iris dataset in Data Table widget. We see that if we choose Append cluster IDs in hierarchical clustering, we can see an additional column in the Data Table named Cluster. This is a way to check how hierarchical clustering clustered individual instances.

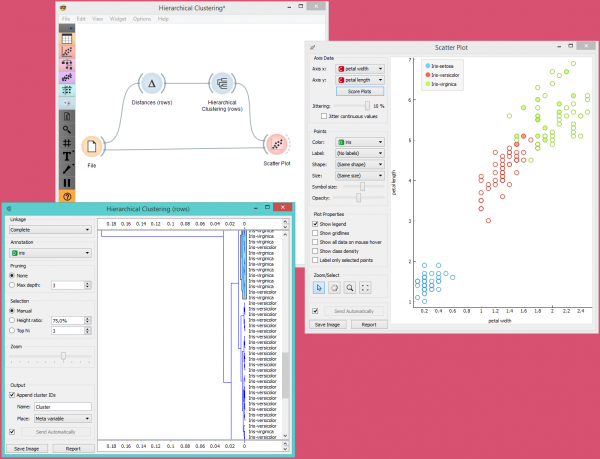

In the second example, we loaded the Iris dataset again, but this time we added the Scatter Plot, showing all the instances from the File widget, while at the same time receiving the selected instances signal from Hierarchical Clustering. This way we can observe the position of the selected cluster(s) in the projection.
